Millennium Series

Millenium Series

The Liberty Process Millennium Heavy-Duty Progressive Cavity Pumps are designed for the most difficult positive displacement pumping applications like heavy and abrasive sludges, greases and slurries in sewage and reclamation processes as well as Return Activated Sludge (RAS), Thickened Waste Activated Sludge transfer (TWAS) and sludge dewatering and chopper transfer pumping in wastewater facilities. The Millennium series is well suited for the waste-oil, crude oil, reclamation, and transfer industries.

All Millennium Series parts such as Rotors and Stators or wetted parts such as connecting rods and seals dimensionally interchange as aftermarket replacements with other popular manufacturers pump models like the Moyno® 2000 Series and the Tarby® Century V Series of Progressive Cavity Pumps potentially saving you and your facility thousands of dollars in replacement part costs yearly.

Over 500 wastewater, waste-transfer, and dewatering facilites in North America currently use Millennium parts in their daily service with little to no appreciable loss in performance vs. OEM competitors with a yearly savings averaging 35% over OEM prices for replacement pumps and parts.

The Millennium series starts with a heavy-duty cast iron bearing frame with large bearings to transmit heavy work loads easily and provide long service life. The pumps utilize heavy-duty gear joints that keep the lubricant in and dirt and other foreign contaminants out during operation.

Pump rotors for the Millennium Series are milled from hardened tool steel or corrosion-resistant stainless steel and then coated with hard chrome plating for increased durability and abrasion resistance. Special wear coatings like titanium and other exotic coatings are available upon request.

Pump stators are injection molded rubber which is available in many specialized compounds depending upon your pumping application. We manufacture stators in buna nitrile for general applications and Viton® for additional chemical compatibility at high temperatures. Other rubber compounds such as natural rubber and EPDM are available upon request.

We stock all pumps and replacement parts at Liberty Process Equipment for immediate shipment to your location.

Please contact your Liberty Process Equipment representative for more information.

Millennium Series - Features

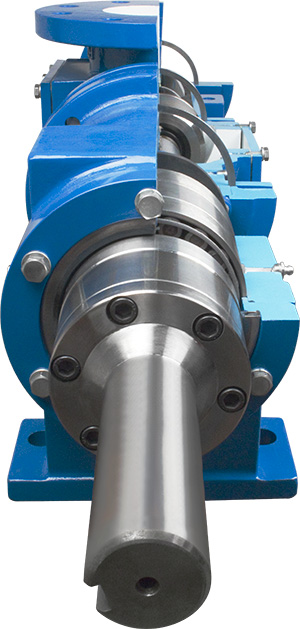

Cutout of the American Series Progressive Cavity Pump
  • Modular Design
  • Maintenance Free
  • Easy Assembly/Disassembly
  • Gear Joint Design
  • Discharge Flange Connections
  • Low Shear
  • Non-Pulsating

Millennium Series - Technical Data

Flow Rate 54 - 788 GPM
Pressure 85 - 350 PSI
Seal Options Packing and Mech. Seal
Base Options Steel and Stainless Steel
Rotors Chrome Plated Tool Steel or Stainless Steel
Stators Buna / Viton® / EPDM / Natural Rubber

Millennium Series - Pump Model Overview

Liberty Process Millennium E012G1L Progressive Cavity Pump

Millennium - E012G1L

The E012G1L Sludge and Sludge Dewatering PC Pump is rated for 12 gallons per minute per 100 revolutions.

Technical Data

Range 0 - 54 GPM
Pressure 85 - 350 PSI

Industry Uses

  • Wastewater Treatment Pumping Applications
  • Graywater & Sewage Pumping
  • Sludge & Sludge Dewatering Applications
Liberty Process Millennium E022G1L Progressive Cavity Pump

Millennium - E022G1L

The E022G1L Digester and Chopper Transfer PC Pump is rated for 22 gallons per minute per 100 revolutions.

Technical Data

Range 55 - 99 GPM
Pressure 85 - 350 PSI

Industry Uses

  • Digester and Chopper Transfer Pump
  • Abrasive Pumping Applications
  • Wastewater Treatment Pumping Applications
Liberty Process Millennium F036G1L Progressive Cavity Pump

Millennium - F036G1L

F036G1L Crude Oil Transfer and Sludge PC Pump is rated for 36 gallons per minute per 100 revolutions.

Technical Data

Range 100 - 162 GPM
Pressure 85 - 350 PSI

Industry Uses

  • High Viscosity Liquids & Heavy Waste Solids
  • Wastewater Treatment Pumping Applications
  • Heavy Crude Oil Transfer Applications
Liberty Process Millennium F050G1L Progressive Cavity Pump

Millennium - F050G1L

F050G1L Sewage and Sewage Transfer PC Pump is rated for 50 gallons per minute per 100 revolutions.

Technical Data

Range 163 - 225 GPM
Pressure 85 - 170 PSI

Industry Uses

  • High Viscosity Liquids & Heavy Waste Solids
  • Sewage removal and transfer Pumping
  • Waste Activated Sludge Pumping Applications
Liberty Process Millennium G065G1L Progressive Cavity Pump

Millennium - G065G1L

G065G1L Waste Activated Sludge PC Pump is rated for 65 gallons per minute per 100 revolutions.

Technical Data

Range 226 - 293 GPM
Pressure 85 - 170 PSI

Industry Uses

  • High Viscosity Liquids & Heavy Waste Solids
  • Thickened Waste Activated Sludge Removal Applications
  • Waste Activated Sludge Pumping
Liberty Process Millennium G090G1L Progressive Cavity Pump

Millennium - G090G1L

G090G1L Return Activated Sludge (RAS) PC Pump is rated for 90 gallons per minute per 100 revolutions.

Technical Data

Range 294 - 405 GPM
Pressure 85 - 170 PSI

Industry Uses

  • Wastewater Treatment Pumping Applications
  • Return Activated Sludge Removal
  • High Viscosity Liquid Applications
Liberty Process Millennium H115G1L Progressive Cavity Pump

Millennium - H115G1L

H115G1L Thickened Waste-Activated Sludge (TWAS) PC Pump is rated for 115 gallons per minute per 100 revolutions.

Technical Data

Range 406 - 517 GPM
Pressure 85 - 170 PSI

Industry Uses

  • Wastewater Treatment Pumping Applications
  • High Viscosity Liquids & Heavy Waste Solids
  • Thickened Waste-Activated Sludge Pumping
Liberty Process Millennium J175G1L Progressive Cavity Pump

Millennium - J175G1L

J175G1L Heavy-Duty Sludge and Mixed Biosolids PC Pump is rated for 175 gallons per minute per 100 revolutions.

Technical Data

Range 518 - 788 GPM
Pressure 85 - 170 PSI

Industry Uses

  • Wastewater Treatment Pumping Applications
  • High Viscosity Liquids & Heavy Waste Solids
  • Mixed Biosolids Pump

Pumps and pump parts offered for sale by Liberty Process Equipment, Inc. are made in the United States, Germany, India, Spain, Argentina and Brazil.
