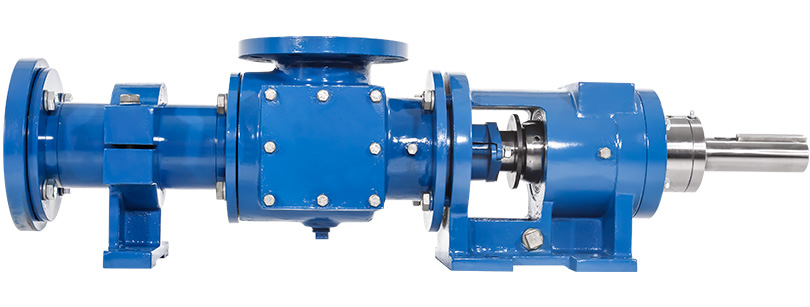

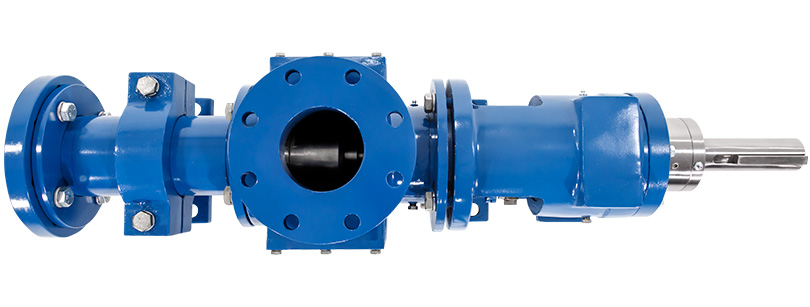

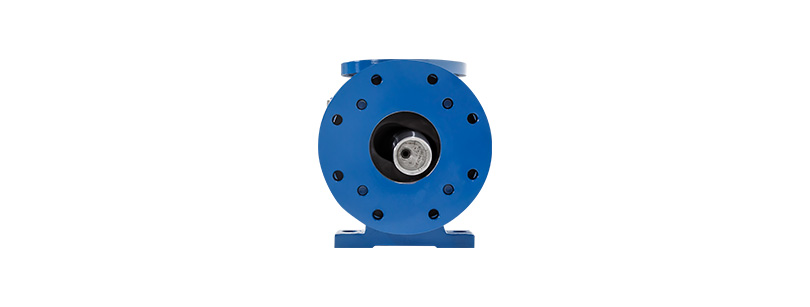

Millennium G065G1L Series Progressive Cavity Pump

The Liberty Process G065G1L Series Heavy Duty Progressive Cavity Pump is ideal for high viscosity solids-enriched liquids and heavy waste solids in secondary pumping appliocations such as (WAS) Waste Activated Sludge Removal applications in water treatment facilities.

The G055G1L is a popular model among the wastewater industry for its ability to pump mixed liquor in the activated sludge control process as well as a majority of the other pumping jobs required in the waste activated sludge process. Solids handling capability of up to 50% by weight allows even the toughest application to be pumped.

The G065G1L's flow rate of 65 gallons/100 revolutions @ 226 to 293 GPM comes in addition to its high temperature resistance of up to 350° degrees fahrenheit and is a standard ANSI flanged pump design manufactured with high strength cast Iron or 316 Stainless Steel pump casings and designed in 1, 2 and up to 4 stages for 85, 170, and 350 psi discharge pressures. Standard suction and discharge flange size for the G065G1L is 8".

All replacement parts for the G065G1L series such as rotors, stators and internal wetted parts such as seals and connecting rods dimensionally interchange as aftermarket replacements with other popular manufacturers pump models like the *Moyno® 2000 Series, the *Tarby® Century V Series, and the *Continental® CK Series of Progressive Cavity Pumps saving you thousands of dollars in replacement part costs and lost downtime waiting for OEM replacements.

The Millennium's modular design comes with a positively sealed, hardened gear joint assembly, hardened tool steel rotors or stainless steel rotors both with hard chrome plating for long-life pumping and a wide selection of stators in Buna Nitrile, Viton®, EPDM and Natural Rubber. All other wetted parts are either carbon steel or 316 stainless steel. The standard seal design is a set of packing with a lantern ring and flush connections. Mechanical seal options are readily available.

Contact a Liberty Process Equipment Representative today for more information about the Millennium G065G1L Series of Progressive Cavity Pumps for Waste Solids and sludge pumping.

Millennium Series - G065G1L - Technical Data

Flow Rate 226 - 293 GPM
Pressure 85 - 350 PSI
Seal Options Packing and Mech. Seal
Base Options Steel or Stainless Steel
INLET / OUTLET 8" / 8" - ANSI Flange
Rotors Chrome Plated Tool Steel or Stainless Steel
Stators Buna Nitrile / Viton® / EPDM / Natural Rubber
Motor Options 1/2, 3/4, 1, 1.5, 2 HP

Pump Features

  • Low Shear
  • Solids handling up to 50%
  • Hardened Joints
  • Packing or Mechanical Seal
  • 4-Stage Options
  • Steel or Stainless Steel

Compatibility

Purchase the G065G1L Pump & Parts

Millennium G065G1L Pumps

Millennium 1G065G1L Progressive Cavity Hopper Pump
Millennium 1G065G1L
CDQ
Millennium 2G065G1L Progressive Cavity Hopper Pump
Millennium 2G065G1L
CDQ

Millennium G065G1L Parts

Millennium G065G1L Gear Joint Kit
Millennium G065G1L
Gear Joint Kit
Millennium G065G1L Gear Drive Shaft
Millennium G065G1L
Drive Shaft Head
Millennium G065G1L Gasket Buna Nitrile
Millennium G065G1L
Gasket Buna Nitrile
Millennium G065G1L Pump Stator
Millennium G065G1L
Pump Stator
Millennium G065G1L Graphite PTFE
Millennium G065G1L
Graphite PTFE
Millennium G065G1L Pump Rotor
Millennium G065G1L
Pump Rotor

Pumps and pump parts offered for sale by Liberty Process Equipment, Inc. are made in the United States, Germany, India, Spain, Argentina and Brazil.

*Liberty Process Equipment, Inc. is not affiliated with nor distributor for Seepex®, Allweiler®, Moyno®, Tarby®, Netzsch®, or Continental Inc.® All referenced product names, brands, models, or part numbers is solely for identification purposes. Seepex® is a registered trademark of Seepex®. Moyno® and Tarby® are registered trademarks of Robins and Myers® and NOV®, Netzsch® Incorporated is a registered trademark of the Netzsch® Group, Allweiler® is a registered trademark of Colfax® Corporations Continental® Pumps is a Trademark of Continental® Ultra Pumps.
