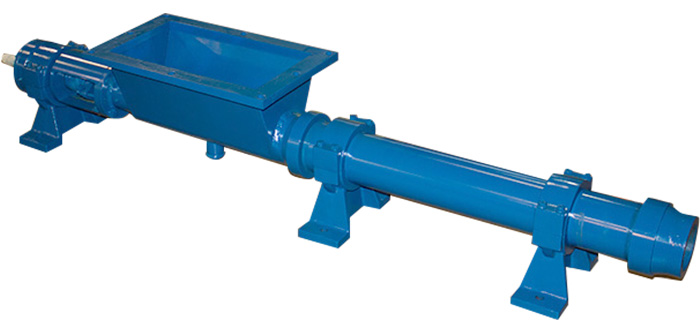

The Liberty Process Justice LJ10 Series Open Hopper Progressive Cavity Pump represents an ideal pumping solution for low-flowable mediums with high solids contents such as vegetables and fruits. Flow rates of 18.8 GPM/ per 100 Revolutions (15 to 85 GPM) at 225 PSI are standard through the range of the series. The Justice Series offers a design of a heavy-duty auger conveyor screw mated to a rotor and stator for the most difficult pumping applications.
The large rectangular feed hopper design easily accommodates your pumping medium while the non-pulsating design of the product produces a low-shear flow that conveys your medium along effortlessly. Solids in suspension of up to 50% are accommodated by the Auger design.
The modular design of the Justice LJ10 Series Open Hopper Progressive Cavity Pump is a hardened pinned-joint drive assembly with a body available in steel or stainless steel and internal wetted components in either stainless steel or hardened tool steel with hard chrome plating for long-life and durability in abrasive pumping applications.
Rotors and Stators for the Justice LJ10 Series are available in 1, 2, and 3 stages for applications with 75, 150, and 225 PSI discharge pressures with stators available in Buna Nitrile, Viton®, EPDM and Natural Rubber. The standard seal design is a set of packing with a lantern ring and flush connections. Mechanical Seal options are readily available.
Contact a Liberty Process representative today for more information about the Justice Series
|Flow Rate||15 - 85 GPM|
|Pressure||0 - 225 PSI|
|Seal Options||Packing and Mech. Seal|
|Base Options||Steel and Stainless Steel|
|INLET / OUTLET||26" x 12" / 5" NPTF|
|Rotors||Tool Steel & Stainless Steel, Chrome Plated|
|Stators||Buna / Viton® / EPDM / Rubber|
|Motor Options||5, 10, 15, HP|
- Large Hopper
- Welded Auger
- Hardened Joints
- Packing or Mechanical Seal
- 3-Stage Options
- Steel or Stainless Steel
Bearing Lock Nut
Bearing Lock Washer
Thrust Grease Sea
Stator Support Foot
Pumps and pump parts offered for sale by Liberty Process Equipment, Inc. are made in the United States, Germany, India, Spain, Argentina and Brazil.
