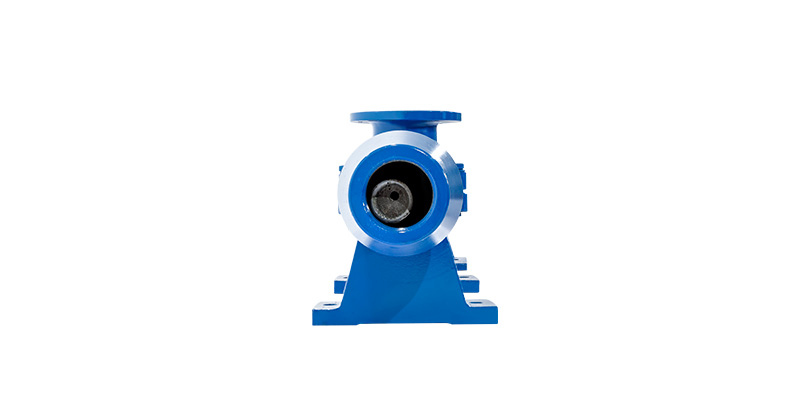

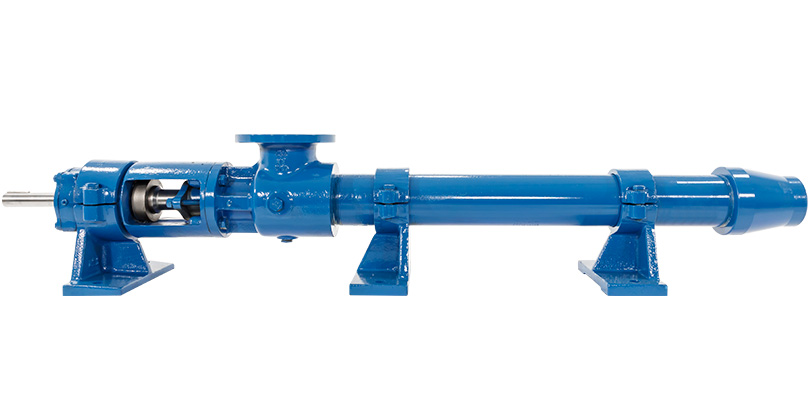

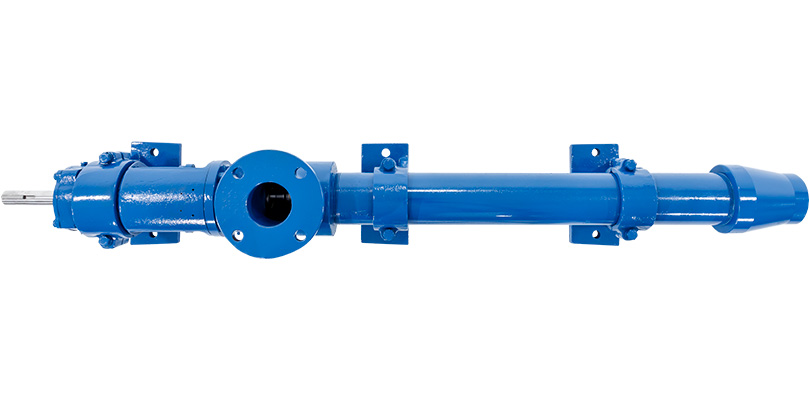

Liberty LL6 Series Progressive Cavity Pump

The Liberty Process LL6 Progressive Cavity Pump is ideal for abrasive applications such as use in hydraulic fracking fluids and drilling mud pumping applications. The LL6 is one of the most popular *L-Frame designs in use today in many different applications due to its robust construction.

Liberty Progressive Cavity pumps and parts are direct aftermarket replacements for the *Moyno® L6 frame, *Tarby® TL6 frame and *Continental CL6 Series frame of progressive cavity pumps. Fracking and drilling mud pumps work under high-pressures with solids laden content, the LL6 can achieve flow rates from 5-47 GPM (5.20 Gallons per 100 revolutions) up to a top pressure of 225 psi.

The LL6 is a standard flanged progressive cavity design manufactured in cast iron or 316 stainless steel casings and designed in 1, 2, and 3 stages for 75, 150, and 225 psi discharge pressures. Higher discharge pressures are available, please contact a Liberty representative for more information.

The LL6's modularity with simple hardened pinned joint drive assembly is a proven design that can handle the most difficult fluid pumping applications. The LL6 PC Rotors are typically tool steel or 316 stainless steel with a hard chrome plating for added durability and resistance to fracking fluids and the grit from mud pumping. All other wetted parts are either carbon steel or 316 stainless steel.

The LL6 Stators are available in many popular elastomer materials such as Buna Nitrile, Natural Rubber, EPDM and Viton. The standard seal design is a set of gland packing with a lantern ring set and flush connections. Mechanical seal options are readily available.

If you currently have a *Moyno®, *Continental®, or *Tarby® brand pump frame, Liberty aftermarket pumps and parts will work with your current unit saving you thousands of dollars, and come with a full warranty and money-back guarantee.

The LL6 is one of the most popular sizes for the L-Frame PC Pump by all pump manufacturers. It has a proven track record of excellence in pumping fluids and as a mud pump for platform installations.

Contact a Liberty Process representative today for more information about the LL6 Series.

Liberty Series - LL6 - Technical Data

Flow Rate 5 - 47 GPM
Pressure 0 - 225 PSI
Seal Options Packing & Mech. Seal
Base Options Carbon and Stainless Steel
INLET / OUTLET 3" / 2-1/2"
Rotors Tool and Stainless Steel, Chrome Plated
Stators Buna / Viton® / EPDM / Rubber
Motor Options 1.5, 2, 3, 5 HP

Pump Features

  • Modular Design
  • Maintenance Free
  • Easy Assembly/Disassembly
  • Simple Pin-Joint Connections
  • NPT discharge Connections
  • Non-Pulsating
  • Low Shear
  • Run in Either Direction

Compatibility

Purchase the LL6 Pump & Parts

Liberty LL6 Pumps

Liberty 1LL6 Progressive Cavity Wobble Stator Pump
Liberty 1LL6
CDQ
Liberty 2LL6 Progressive Cavity Wobble Stator Pump
Liberty 2LL6
CDQ
Liberty 3LL6 Progressive Cavity Wobble Stator Pump
Liberty 3LL6
CDQ

Liberty LL6 Parts

Liberty LL6 Pump Stator
Liberty LL6
Pump Stator
Liberty LL6 Pump Rotor
Liberty LL6
Pump Rotor
Liberty LL6 Connecting Rod
Liberty LL6
Connecting Rod
Liberty LL6 Connecting Rod Kit
Liberty LL6
Connecting Rod Kit
Liberty LL6 Drive Shaft
Liberty LL6
Drive Shaft
Liberty LL6 Bearing Cover Plate
Liberty LL6
Bearing Cover Plate
Liberty LL6 Bearing Kit
Liberty LL6
Bearing Kit
Liberty LL6 Bearing Lock Nut
Liberty LL6
Bearing Lock Nut
Liberty LL6 Bearing Lock Washer
Liberty LL6
Bearing Lock Washer
Liberty LL6 Bearing Spacer
Liberty LL6
Bearing Spacer
Liberty LL6 Collar Pin Retainer
Liberty LL6
Collar Pin Retainer

Pumps and pump parts offered for sale by Liberty Process Equipment, Inc. are made in the United States, Germany, India, Spain, Argentina and Brazil.

*Liberty Process Equipment, Inc. is not affiliated with nor distributor for Seepex®, Allweiler®, Moyno®, Tarby®, Netzsch®, or Continental Inc.® All referenced product names, brands, models, or part numbers is solely for identification purposes. Seepex® is a registered trademark of Seepex®. Moyno® and Tarby® are registered trademarks of Robins and Myers® and NOV®, Netzsch® Incorporated is a registered trademark of the Netzsch® Group, Allweiler® is a registered trademark of Colfax® Corporations Continental® Pumps is a Trademark of Continental® Ultra Pumps.
