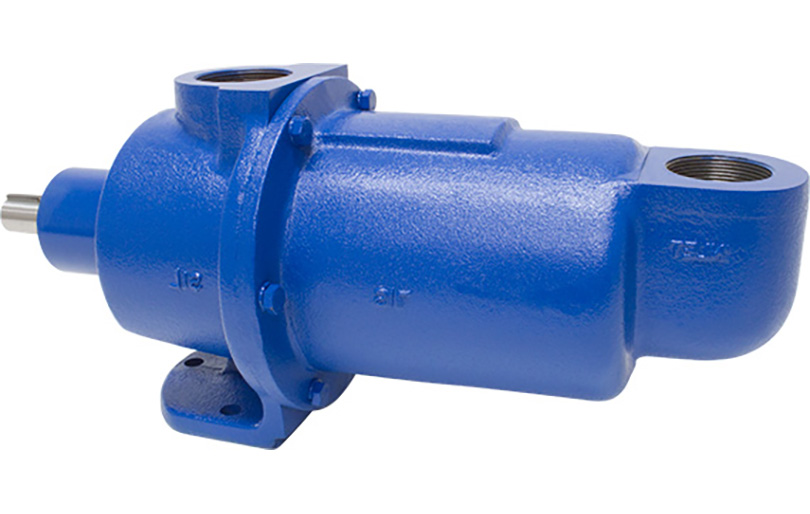

American APM-44 Progressive Cavity Wobble Stator Pump

American Series APM-44 Progressive Cavity Pump

The Liberty Process American APM-44 Series Progressive Cavity Wobble Stator Pump from Liberty Process Equipment offers the best value available on the pump market for a progressive cavity pump for flows up to 15 GPM and pressures up to 50 psi. The simple design of the wobble stator and just one universal joint give you the inherent advantages of a progressive cavity pump of low pulsation and shear, solids handling and viscous liquids at an affordable price.

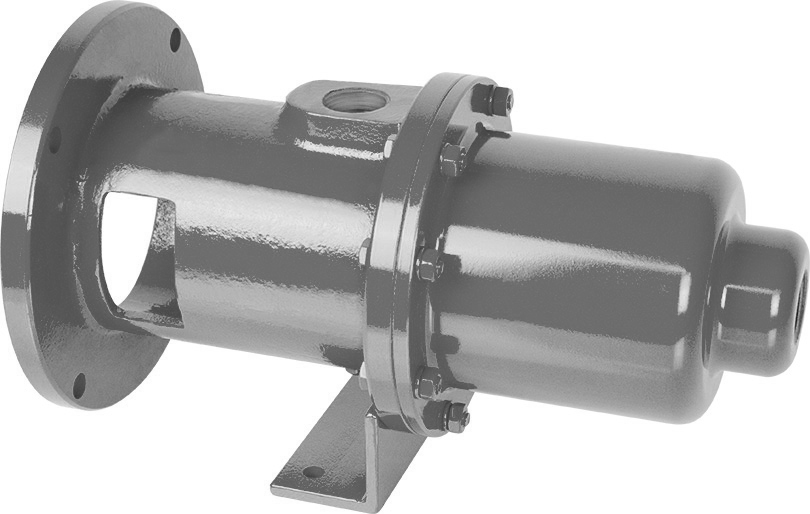

The Close-Coupled Version is available in either Cast Iron or 316 Stainless Steel with standard Buna Nitrile Stator with options in Viton and EPDM and Stainless Internals with a hard-chrome plated rotor for long service life. In addition, the pump is available with a standard mechanical seal or can be upgraded to a hard-face mechanical seal for abrasion resistance.

The American Pump Series is offered with our unique Close-Coupled design mounted to a 56C Free C-Face motor. All pumps are offered "off the shelf" from our inventory for immediate shipment.

American Series - APM-44 - Technical Data

Flow Rate 0 - 15 GPM
Pressure 0 - 50 PSI
Seal Options Standard Mech. Seal
Base Options Steel or Stainless Steel
INLET / OUTLET 3/4" - 3/4"
Rotors Stainless Steel Chrome-Plated
Stators Buna / Viton® / EPDM
Motor Options 1.5, and 2 hp

Pump Features

  • Compact Design
  • Solids Handling
  • Gear Reduction Options
  • Direct Motor Speeds
  • Low Shear
  • Low Cost

Purchase the APM-44 Pump & Parts

American APM-44 Pumps

American AP-44 Progressive Cavity Wobble Stator Pump
American APM-44
CSFM
American APM-44 Progressive Cavity Wobble Stator Pump
American APM-44
CSQM
American APM-44 Progressive Cavity Wobble Stator Pump
American APM-44
SSFM
American APM-44 Progressive Cavity Wobble Stator Pump
American APM-44
SSQM
American APM-44 Progressive Cavity Wobble Stator Pump
American APM-44
CSQMP
American APM-44 Progressive Cavity Wobble Stator Pump
American APM-44
SSQMP

American APM-44 Parts

American APM-44 Pump Stator
American APM-44
Pump Stator
American APM-44 Mechanical Pump Seal
American APM-44
Mechanical Pump Seal
American APM-44 Threaded Flex Joint
American APM-44
Threaded Flex Joint
American APM-44 Drain Plug
American APM-44
Drain Plug
American APM-44 Suction Case
American APM-44
Suction Case

Pumps and pump parts offered for sale by Liberty Process Equipment, Inc. are made in the United States, Germany, India, Spain, Argentina and Brazil.

*Liberty Process Equipment, Inc. is not affiliated with nor distributor for Seepex®, Allweiler®, Moyno®, Tarby®, Netzsch®, or Continental Inc.® All referenced product names, brands, models, or part numbers is solely for identification purposes. Seepex® is a registered trademark of Seepex®. Moyno® and Tarby® are registered trademarks of Robins and Myers® and NOV®, Netzsch® Incorporated is a registered trademark of the Netzsch® Group, Allweiler® is a registered trademark of Colfax® Corporations Continental® Pumps is a Trademark of Continental® Ultra Pumps.
